More ROOM. same caymas performance
401 DR
Starting at
$39,886*

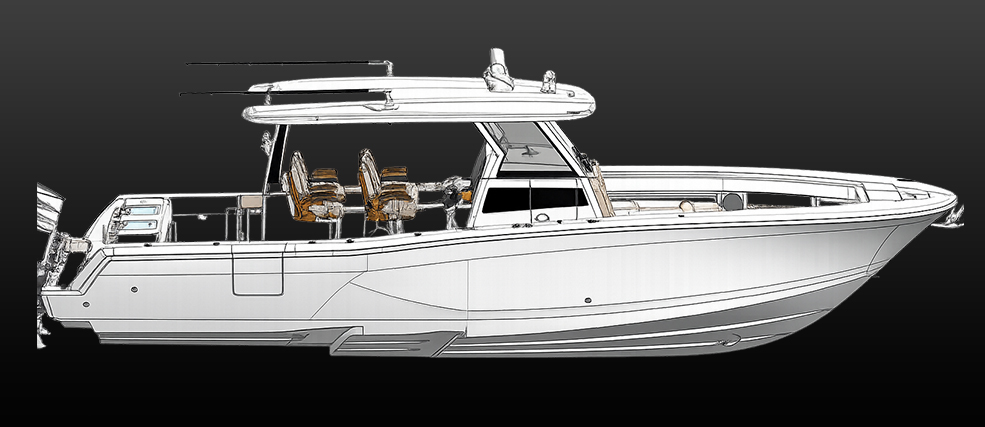

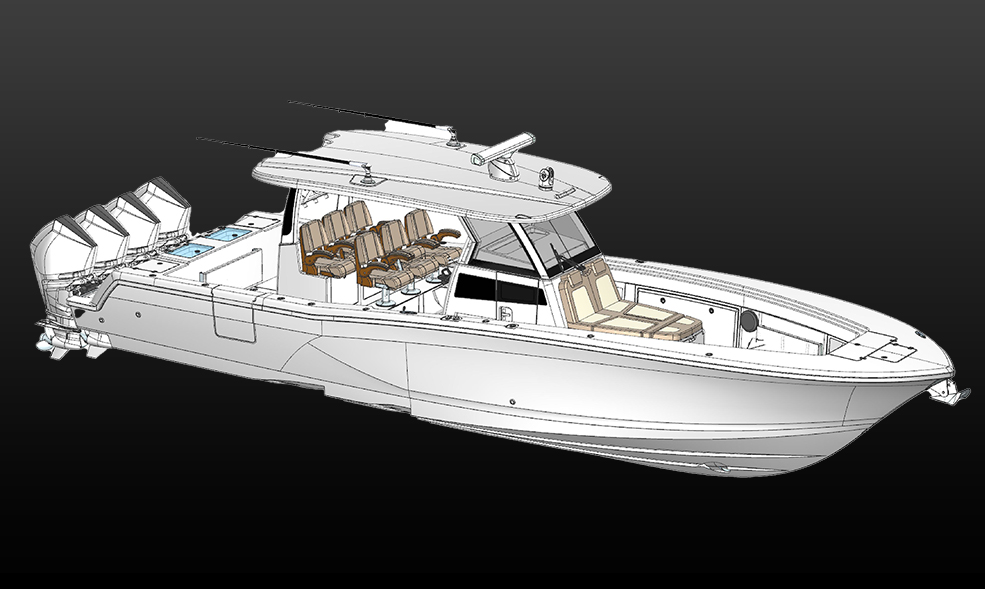

The Caymas 401 DR is designed for boaters who demand both high-end comfort and uncompromising performance. By introducing double-row seating into the 40-foot center console platform, Caymas has created a boat that delivers a more spacious, social experience on the water.
*pictured boat may show optional features
401 DR Specifications
The 401 DR maintains the offshore capability and confident ride Caymas owners expect, while offering increased seating and comfort for longer runs and full-crew days. Whether you’re chasing fish offshore or enjoying a day of cruising and entertaining, the layout is engineered to keep everyone comfortable without getting in the way of performance.
Every element of the 401 DR reflects Caymas’ focus on innovation, usability, and craftsmanship — making it a standout choice for those who want premium performance with added versatility.
This is Caymas comfort, elevated.
- Length 39’ 11”
- BEAM 11’ 6”
- Height (Waterline to top of hardtop) 8’ 11”
- DRAFT (ENGINES UP) 27”
- DEADRISE AT TRANSOM 22.5°
- FREEBOARD 36”
- DRY WEIGHT WITHOUT ENGINES 14,000 lbs
- MAX HORSEPOWER 2000 hp
- FUEL 559 gal.
- FRESHWATER 51 gal.
- HOLDING TANK 18 gal.
- LIVEWELLS (2 at TRANSOM) 45 gal. ea
- FISH BOX capacity460 gal.
- COOLER AT LEANING POST30 GAL
- CHAISE LOUNGE STORAGE BOX CAPACITY 75 GAL
401 DR Standard Features
- Patented Michael Peters double Stepped V Ventilated Tunnel (SVVT) running surface
- Limited lifetime hull warranty
- 3-year limited component warranty
- Integrated aluminum mounting blocks molded into stringer system for gyroscope stabilizer
- 100% composite construction – no wood
- Tri-core composite transom
- High performance resin and barrier coat
- Hull hand laid fiberglass construction with foam core
- Zero-flex fully foamed finished stringer system with integrated chase tubes
- Premium gelcoat, Pure White, with UV inhibitors
- Fiberglass deck with integrated gutter system and self-bailing cockpit
- Custom nonskid walking surfaces
- Fuel tanks (3) 5052 aluminum
- Plumbing and electrical systems factory tested
- Pressurized transom livewells with custom Caymas acrylic lid, dual fill with adjustable drain and overflow, painted blue
- Hooker® SeaChest live well system: (2) 2500 GPH variable speed Hooker® pumps and helm control knobs with custom high-speed pickups port & starboard
- Windless with custom anchor and bow roller
- Custom fuel manifold valve system above deck for easy access and operation
- 7″ digital engine gauge for engine package
- Push button start for engine ignition
- Electric trim tabs with LED control at helm station
- Stainless steel push-button switches with custom backlit acrylic panel
- Battery chargers located in leaning post and console
- Battery distribution panel in leaning post with remote battery switches and charging relays
- Circuit breaker protected tinned wiring and custom panel with ignition key switches inside console
- LED anchor light and navigation lights integrated into hard top
- LED cockpit courtesy lights
- LED interior console lights
- LED compartment lights
- LED livewell lights
- LED under gunnel lights
- Aft (3) 1500 GPH bilge pumps connected to automatic float switches and manual operation through stainless steel dash switches
- Mid-ship automatic bilge pump
- Whale® Gulper macerator pumps for all fish boxes
- Potable freshwater system with cabin sink and washdowns at anchor locker and midship
- Blackwater holding tank with pump out
- Stainless steel props
- Stainless steel 10″ pop-up cleats stern, mid-ship and bow
- Stainless steel through hull fittings
- 316 stainless steel hardware
- Integrated 4 step Res-Q ladder
- Finished hatch lids on both sides including stainless steel compression latches, lid seal gaskets and gutter drains
- Aluminum backing plates glassed in for seats, cleats, rails, rod holders and tops
- Custom stainless steel rub rail
- Fiberglass hardtop with integrated powder coated aluminum supports, (7) spreader lights, (9) integrated rod holders, overhead electronics pod with storage, molded-in radar pod and (4) overhead lights, (6) speaker pods, and 3-sided custom glass windshield with electrically actuated windshield vent and windshield wiper

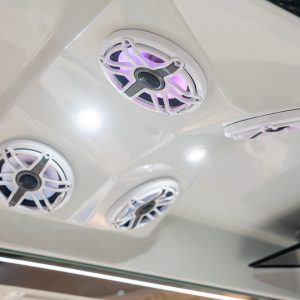

- JL® Marine MM105 AM/FM, Bluetooth, NMEA 2000 stereo with (8) M6 6.5″ speakers and amplifier
- Forward chaise lounge seating with armrests integrated into console with dry storage, 15-gallon cooler, (2) large cup holders, grab handles, and (10) rod holders
- Leaning post with (4) rod holders, (5) large cup holders and tackle storage units.

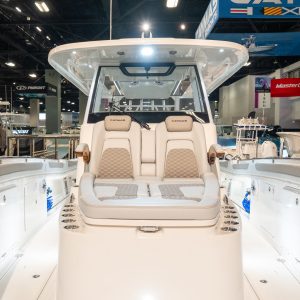

- (6) Llebroc helm chairs

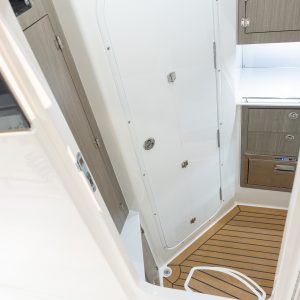

- Fiberglass entry door to console with heavy-duty stainless steel locking door hardware
- Enclosed electric porcelain head plumbed to holding tank with overboard discharge
- Fiberglass sink vanity with retractable handheld wand and Corian® countertops
- Powder coated console steps for easy access into console
- Large cup holders on helm (4)
- Glove box at helm with USB charging outlet and 12v plug
- Edson® polished stainless comfort grip wheel with tilt and power knob

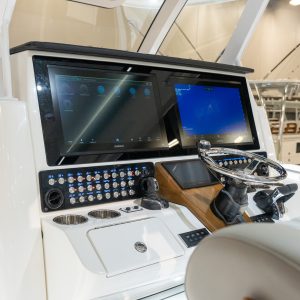

- Dash accommodates (2) 22″ or (2) 24″ screens
- Hinged console helm station for easy access to the backside of helm for electronics and rigging
- Elevated helm station
- Compass, flush mounted at helm
- Teak flooring for inside of console and stair treads
- Recessed stainless steel bow rail
- Self-bailing cockpit with (4) large cockpit scuppers and custom stainless steel Caymas branded cover plate
- Stainless steel lid pistons on floor deck hatches
- Friction hinges on above-deck hatches
- (6) stainless steel gunnel rod holders
- (7) stainless steel transom rod holders
- Under gunnel rod storage
- Starboard tackle storage with fire extinguisher
- Port integrated trash can with fire extinguisher
- Forward fender storage box with LED lights
- Insulated transom storage boxes port and starboard
- Sunbrella Horizon white marine upholstery combing bolsters and all seating surfaces

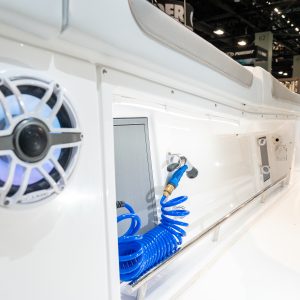

- Raw water washdown
